Built for high-temperature sealing and isolation, this kit performs in elevated-heat and thermally aggressive industrial environments.
A robust isolation kit featuring a glass-reinforced epoxy core and strong dielectric performance for demanding service conditions.
Built with materials that withstand high operational temperatures.
Maintains isolation properties under thermal and electrical stress.
Available in pressure ratings suitable for demanding pipelines.
Designed to avoid material deformation under thermal load.
Engineered to Accommodate the Widest Range of Flange Classes, Face
Configurations, and Flange Standards

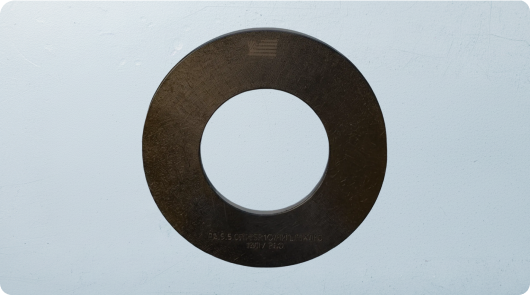

The gasket provides isolation of the two flanges and is a grooved kammprofile stainless steel 316l core which delivers huge strength and rigidity. The kammprofile facings are high dielectric strength modified PTFE or mica. Optional core materials include various grades of stainless steel, duplex steel and nickel alloys.
Isolate the stud bolts from the flanges. Material selection is determined by the service temperature and choice of carrier and seals.
Isolate the nut from the flanges and operate with the isolation sleeve. Key properties are compressive strength to resist stud tightening and dielectric strength. Material selection is determined by temperature.
.png)
Withstands elevated temperatures in steam and process lines.
Resists deformation from expansion and contraction at high heat.
Maintains dielectric performance in harsh, thermally aggressive conditions.
Performs across Class 150–2500 flange systems with confidence.
In high-temperature applications where standard kits may degrade,
Commander HT ensures safe sealing and consistent electrical isolation.
Ideal for sealing and isolation in low-pressure systems, utility lines, and non-
aggressive media across general industrial environments.
Oil & Gas
Utilities &
Water
Process
Industries
Steam & Water
Services

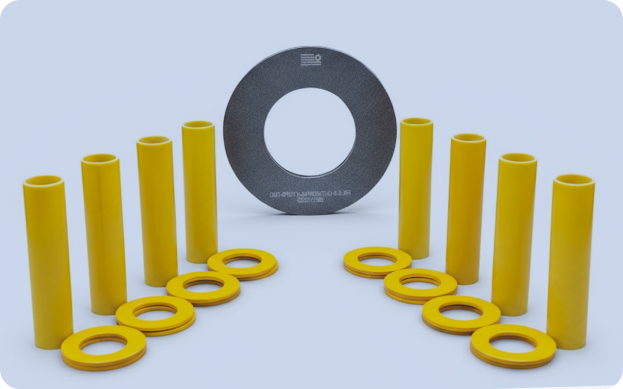

Everything you need for complete flange isolation — gasket, sleeves,
washers, and backup components packed for easy installation.
Thermally resistant gasket designed for high-temp sealing and isolation.
Engineered to maintain insulation despite ambient or process heat.
Non-conductive washers designed for elevated-temp durability.
Metal washers to stabilize load under fluctuating heat cycles.
.png)
For full technical details, download the official datasheet.
